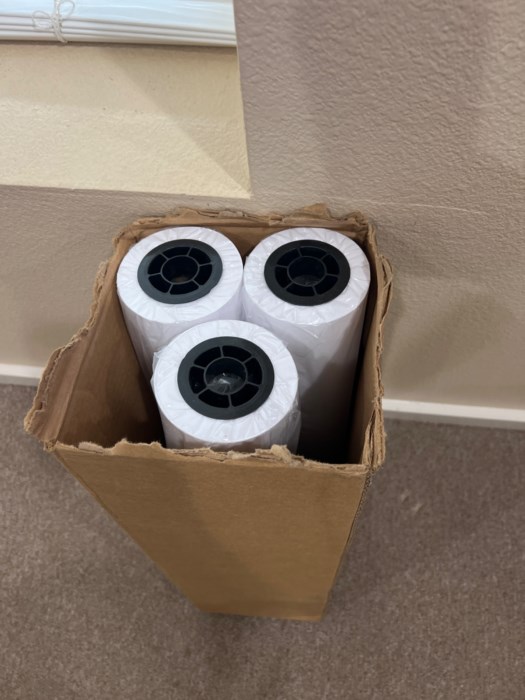

HP DesignJet T520 ***FULLY FUNCTIONAL*** ***GREAT FOR DRAFTING APPLICATIONS*** ***3rungs of paper included*** This top selling large format printer makes it easy to achieve accurate lines and sharp details in your designs, maps, photos, and presentations at resolutions up to 2400 dpi. With convenient features and a space-saving design, the Wi-Fi connected¹ HP DesignJet T520 Printer fits the way you work.

Configuration: Print, 1 Roll

SPECIFICATIONS :

Functions Print Functions Print Speed specifications Print time line drawing (economode, A1 plain paper) 35 sec/page Print speed line drawing (economode, A1 plain paper) 70 A1 prints per hour Memory specifications Memory 1 GB Internal Storage None Technical specifications Print quality (best) Color: Up to 2400 x 1200 optimized dpi Black: Up to 2400 x 1200 optimized dpi from 1200 x 1200 input dpi and Optimization For Photo Paper selected Print technology HP Thermal Inkjet Number of print cartridges 4 (cyan, magenta, yellow, black) Ink types Dye-based (C, M, Y) pigment-based (K) Non-printable area (cut-sheet) 5 x 5 x 5 x 5 mm Guaranteed minimum line width 0.07 mm (ISO/IEC 13660:2001(E)) Line accuracy ±0.1% Maximum optical density (black) 8 L* min/2.10 D (With HP Premium Instant Dry Photo Gloss media with Original HP inks.) Paper handling

Finished output handling Sheet feed roll feed input tray media bin automatic cutter Media types Bond and coated paper (bond, coated, heavyweight coated, recycled, plain, bright white), technical paper (natural tracing, vellum), film (clear, matte), photographic paper (satin, gloss, semigloss, premium, polypropylene), self-adhesive (adhesive, polypropylene) Media weights, recommended 60 to 280 g/m² (roll/manual feed) 60 to 220 g/m² (input tray) Media sizes standard (metric rolls) 210 to 610-mm wide sheets 279 to 610-mm rolls Media sizes, custom Input tray: 210 x 279 to 330 x 482 mm manual feed: 330 x 482 to 610 x 1897 mm roll: 279 to 610 mm Roll external diameter 100 mm Media thickness Up to 11.8 mil Connectivity

HP ePrint capability Yes Printing path Windows and Mac printer drivers, Apple AirPrint, HP Print Service Plugin for Android, HP Print for Chrome for Chrome OS Connectivity, standard Fast Ethernet (100Base-T) Hi-Speed USB 2.0 certified Wi-Fi Print languages HP-GL/2, HP-RTL, JPEG, CALS G4 Power and operating requirements

Power consumption < 35 watts (printing), < 0.3 watts (standby) Operating temperature range 5 to 40ºC Dimensions and weight

Minimum dimensions (W x D x H) 50.9" x 20.9" x 36.7" Weight 86.4 lbs
